ATI Leonardo Osprey

Leonardo Seaspray/Osprey AESA Radar Systems

Leonardo’s Seaspray and Osprey radar families deliver advanced AESA technology for multi-domain intelligence, surveillance, and reconnaissance (ISR) missions. Designed for platforms ranging from UAVs to manned aircraft, these radars offer scalable, high-performance capabilities including maritime surveillance, ground mapping, and air-to-air tracking. With exceptional reliability, real-time imaging, and all-weather operation, Seaspray and Osprey are trusted solutions for both tactical and strategic missions across air, land, and sea.

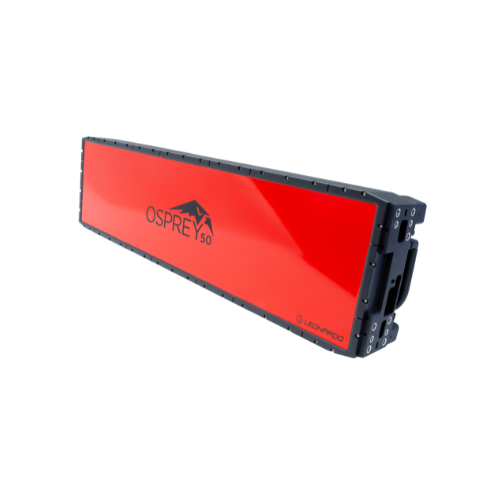

Osprey Radar Family

The Osprey radar series is Leonardo’s next-generation AESA solution, offering scalable, low-SWaP (Size, Weight, and Power) radars with advanced multi-domain performance and 360° coverage. Designed without moving parts and optimized for fixed-wing, rotary-wing, and unmanned platforms, Osprey radars are modular, flexible, and combat-proven.

  • Osprey MM (Multi-Mission): The latest in the Osprey line, Osprey MM delivers second-generation AESA performance with fixed E-scan antennas and a highly compact design. It supports maritime surveillance, SAR ground mapping, air-to-air tracking, and moving target indication (MTI). With instantaneous mode switching, a maximum range of 200 NM, and up to 1000 simultaneous tracks, it is tailored for persistent, high-altitude operations on UAS and multi-role aircraft.

  • Osprey 30 / Osprey 50: These variants offer configurable antenna sizes to suit different platform constraints. Osprey 30 is suited to small-to-medium UAVs and helicopters, while Osprey 50 provides extended range and capability for medium and large aircraft. Both deliver 360° coverage with fixed panels and are ideal for maritime patrol, ISR, and SAR missions.

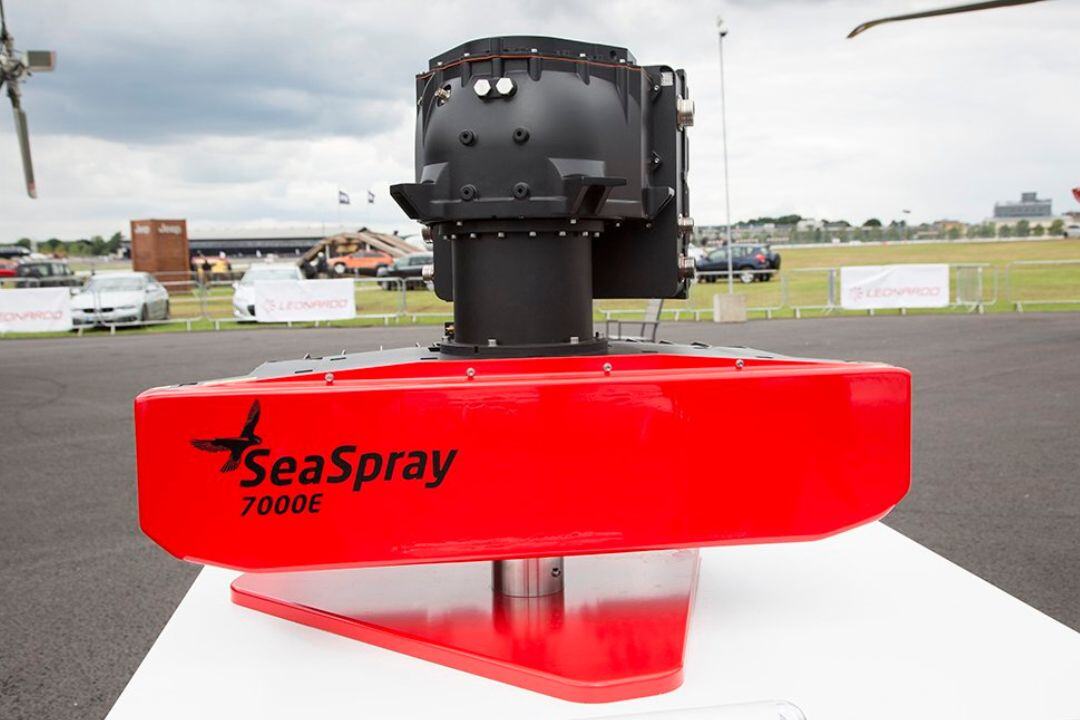

ATI seaspray photo1

Seaspray Radar Family

Leonardo’s Seaspray radar family delivers high-performance AESA (Active Electronically Scanned Array) surveillance capabilities optimized for multi-domain ISR missions. These radars are widely adopted by global defense forces for their reliability, flexible integration, and robust target detection in complex environments.

  • Seaspray 5000E: A compact AESA radar ideal for light aircraft and UAVs. It offers long-range search and high-resolution imaging in maritime and overland operations, providing robust performance in a lightweight form factor.

  • Seaspray 7000E: A mid-range radar that balances size and performance, it is known for delivering advanced multi-mode capabilities including maritime surveillance, ground moving target indication (GMTI), and synthetic aperture radar (SAR) imaging. Selected for platforms like the AW159 Wildcat, it offers outstanding mission flexibility.

  • Seaspray 7500E V2: The most powerful of the Seaspray family, this radar is designed for strategic ISR missions and wide-area surveillance. It provides exceptional range, simultaneous multi-target tracking, and high-resolution SAR imaging—ideal for demanding maritime and littoral operations.
